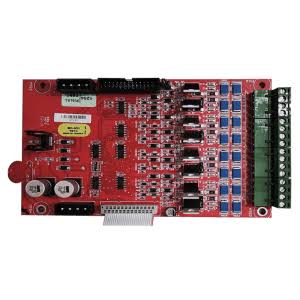

The DM-1008A is an 8-Circuit Initiating Module designed for compatible Mircom fire alarm control panel systems. It provides flexible initiating circuit configuration for connecting fire alarm initiating devices and monitoring zones.
The DM-1008A provides up to 8 Class B (Style B) initiating circuits or 4 Class A (Style D) initiating circuits, allowing the module to be configured according to the requirements of the fire alarm installation.
The module features zoned trouble LED indication, providing visual indication of trouble conditions associated with the initiating circuits. This helps simplify system monitoring and troubleshooting.
The DM-1008A uses one module space within the compatible fire alarm control panel enclosure, making it suitable for installations requiring additional initiating circuit capacity without occupying excessive panel space.
Circuit Configuration:
- 8 Class B (Style B) initiating circuits
- 4 Class A (Style D) initiating circuits
Indication:
- Zoned Trouble LED
Module Space:
- Uses 1 module space
Application:
- Fire alarm initiating device monitoring
- Zone expansion
- Compatible Mircom fire alarm control systems
The DM-1008A is suitable for fire alarm applications requiring multiple initiating circuits with selectable Class A or Class B wiring configurations and zoned trouble indication.
