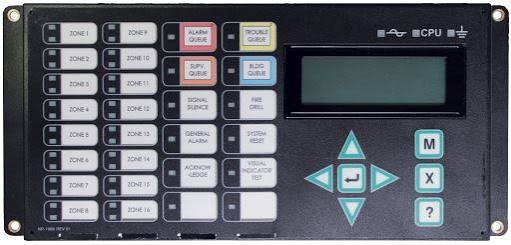

The DSPL-420-16TZDS Main Display Module provides a compact main display and control interface for compatible Mircom fire alarm systems. It features a 4-line by 20-character backlit LCD, four cursor buttons with Enter, plus Menu, Cancel and Information buttons for navigating system menus.
The module includes 16 configurable bi-coloured LED annunciation points, four queue buttons with LED indicators for Alarm, Supervisory, Trouble and Monitor, and eight control buttons with individual LED indicators. Additional LEDs indicate AC On, Ground Fault and CPU Fault conditions.
The DSPL-420-16TZDS is designed to mount in a standard display-window cutout on compatible FleX-Net, MMX and FX-2000 series doors and occupies one display position in the BBX-FXMNS enclosure
Shipping policy
Related Products

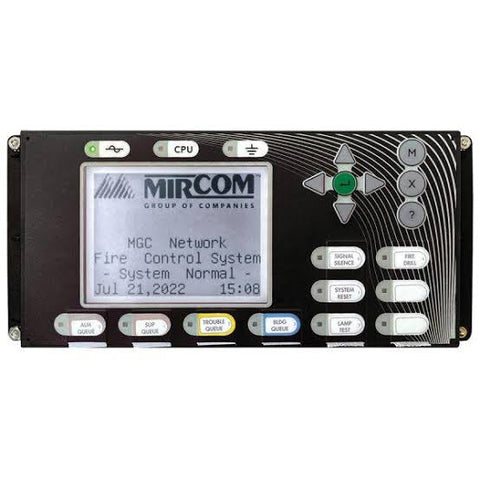

Main Display Module – DSPL-420DS
